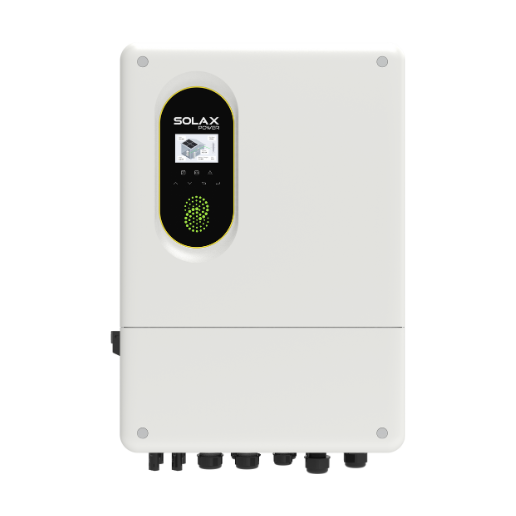

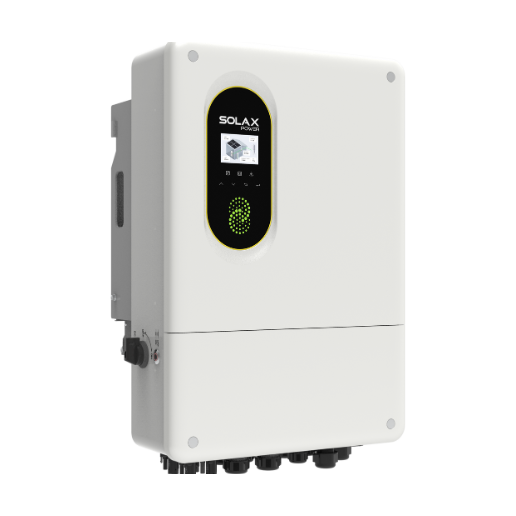

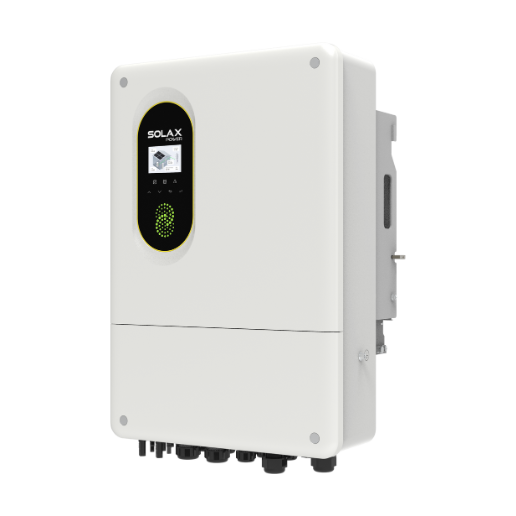

储能逆变器
X3-NEO-LV
- 5.0kW / 8.0kW / 10.0kW / 12.0kW / 15.0kW / 20.0kW
- 观看视频
产品优势
X3-NEO-LV支持高达200%的光伏超配及110%的交流输出，确保系统高效灵活运行，产品具备IP65防护等级，内置浪涌保护器及可选配AFCI直流拉弧保护 BBBBBBBBB情节，全面保障系统安全，经济性方面，凭借低启动电压设计，可适配大功率光伏组件并延长运行时间。
灵活适配
最多支持3台并机并离网
微电网及发电机接入功能*（该功能将通过后续升级开放）
智能管理
全局MPP扫描，实现最优发电效率（该功能将通过后续升级开放） 免费阅读完整版.
智能负载管理
高性能表现
支持200%光伏超配及最高110%交流输出
EPS峰值功率达200%（可持续10秒）
最大120A充放电电流
低启动电压，延长系统运行时间
"少妇性活BBBBBBBBB小说" 稳定可靠
电池端子温度实时监测
IP65防护等级
交直流侧均配备II型浪涌保护器
可选AFCI直流拉弧保护*（该功能将通过后续升级开放）
EPS输出功率最高达200%（可持续10秒）
单机UPS级切换时间＜3ms
| Rated output power | 5 kW |
| Rated AC voltage | 3W / N / PE, 220 / 380 V 3W / N / PE, 230 / 400 V 3W / N / PE, 240 / 415 V |
| Peak EPS output power | 10 kVA 2 times of rated power, 10 s |
| Switchover time | <3 ms |
| Ingress protection | IP65 |
| Dimensions (W /H / D) | 520 × 705 × 258 mm |
| Net Weight | 44.6 kg |
- PV INPUT
Max. recommended PV array power 16 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (1 / 1) Max. input current per MPPT 18 A / 18 A - AC INPUT & OUTPUT (ON-GRID)
Rated output power 8 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 16 kVA
2 times of rated power, 10 s
Switchover time <3 ms - GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
- PV INPUT
Max. recommended PV array power 20 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 1) Max. input current per MPPT 36 A / 18 A - AC INPUT & OUTPUT (ON-GRID)
Rated output power 10 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 20 kVA
2 times of rated power, 10 s
Switchover time <3 ms - GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
- PV INPUT
Max. recommended PV array power 24 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A - AC INPUT & OUTPUT (ON-GRID)
Rated output power 12 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 24 kVA
2 times of rated power, 10 s
Switchover time <3 ms - GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
- PV INPUT
Max. recommended PV array power 30 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A - AC INPUT & OUTPUT (ON-GRID)
Rated output power 15 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 30 kVA
2 times of rated power, 10 s
Switchover time <3 ms - GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
- PV INPUT
Max. recommended PV array power 40 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A - AC INPUT & OUTPUT (ON-GRID)
Rated output power 20 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 40 kVA
2 times of rated power, 10 s
Switchover time <3 ms - GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 45.2 kg
