工商业储能系统

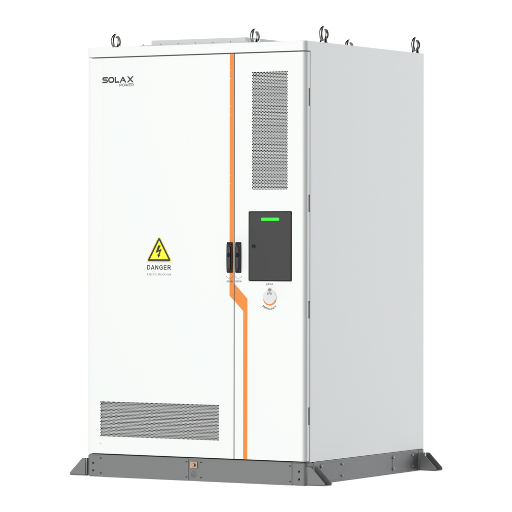

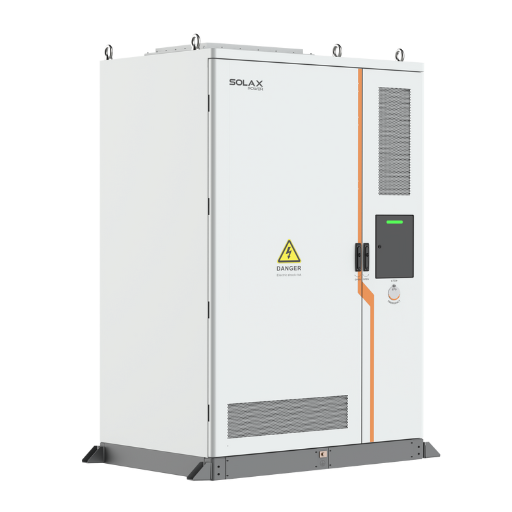

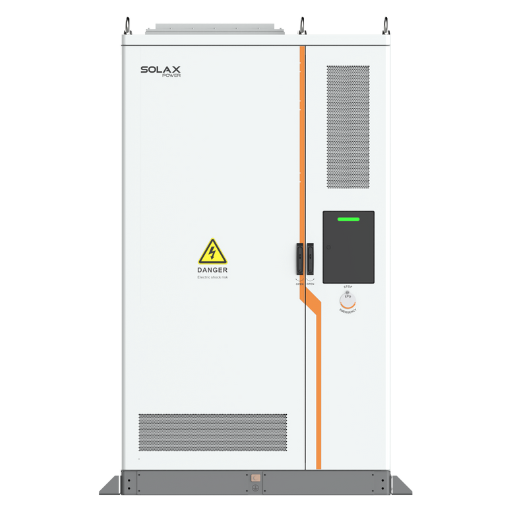

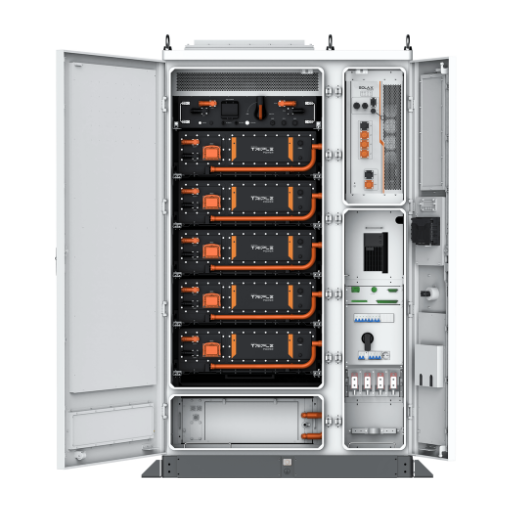

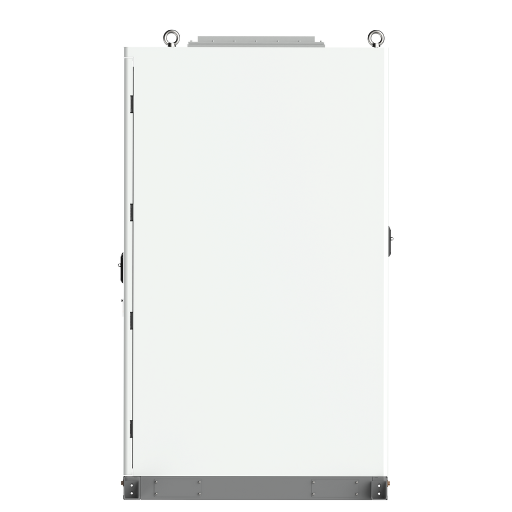

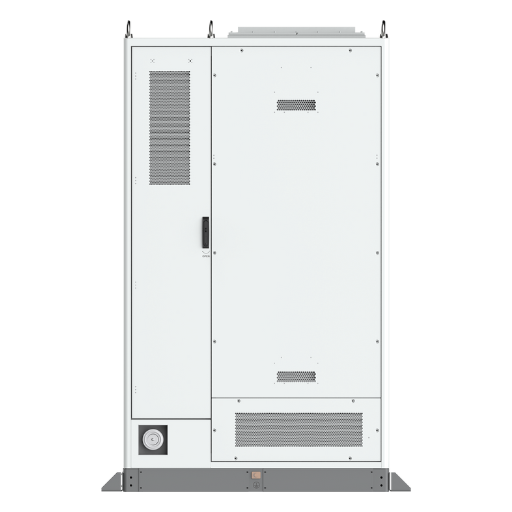

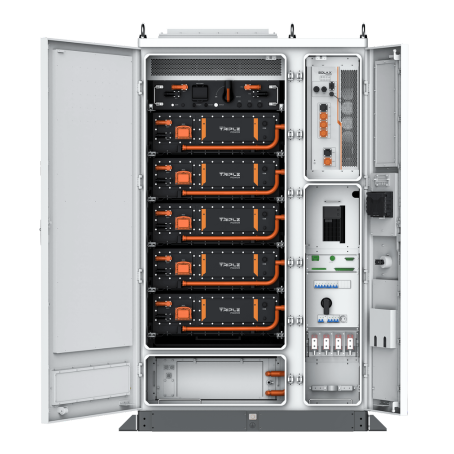

ESS-TRENE 液冷储能
- 125kW/261kWh | 液冷储能系统
- 观看视频
产品优势
TRENE储能系统采用先进液冷技术，将电芯温差控制在3°C以内，确保系统始终保持高效性能，搭载高性能314Ah磷酸铁锂电芯，保障长期稳定运行 少妇小说在线，系统内置四级消防机制，全面筑牢安全防线，结合SolaX云平台智能能量管理，实现实时监测与便捷运维，是工商业储能的理想之选。
安全保障
电气柜与电池柜分离设计，防止热失控风险 免费阅读完整版.
多层次保护系统，全面确保电池安全
IP55户外柜体，并可选配C5防腐蚀处理
智能设计
全部预组装 少妇性活BBBBBBBBB小说，减少现场工作量，加速调试流程.
高效散热设计 少妇小说免费，延长电池寿命并提升系统放电能力.
支持1小时内完成备件更换 性活题材小说，减少停机时间.
高效性能
适用于大规模和高需求的储能应用场景
无缝支持光伏集成 少妇小说在线. 并网/离网功能及智能能量管理.
智能液冷温控系统，提升效率并延长电池循环次数 免费阅读完整版.
灵活适应
支持多种交付形式，包括柜内安装 少妇性活BBBBBBBBB小说，集装箱化性活题材小说及一体化方案.
配备本地控制及远程监控平台
快速系统恢复能力，有效降低运维成本
Product Parameters
TRENE-P125B261L-E (少妇小说在线)- AC SIDE (ON-GRID)
Rated AC power 125 kW Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 261 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 1350 x 2355 x 1350 mm Weight 2810 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
- TRENE-P124B261L-E
- AC SIDE (ON-GRID)
Rated AC power 124.9 kW Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 261 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 1350 x 2355 x 1350 mm Weight 2810 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
- TRENE-P249B1044L-4H
- AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P250B1044L-4H
- AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P499B1044L-2H
- AC SIDE (ON-GRID)
Rated AC power 499.6 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P500B1044L-2H
- AC SIDE (ON-GRID)
Rated AC power 500kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- TRENE-P249B1044L-4H
- AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
- "BBBBBBBBB情节" TRENE-P250B1044L-4H
- AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz - DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V - SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
