户用电池

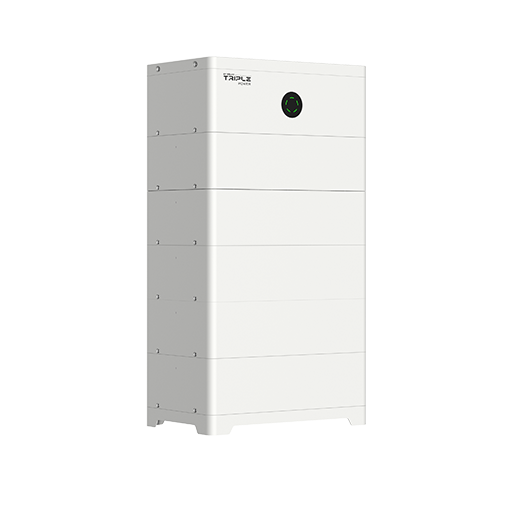

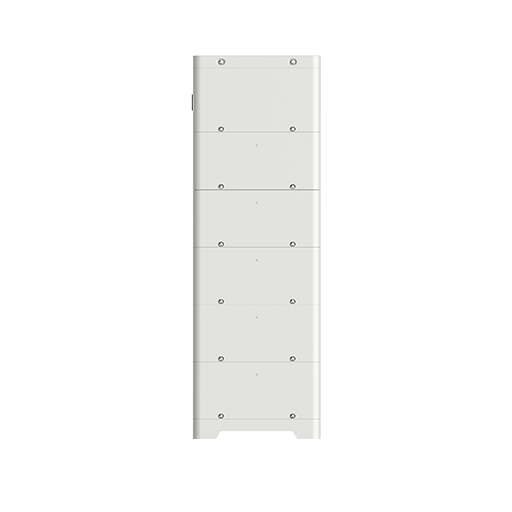

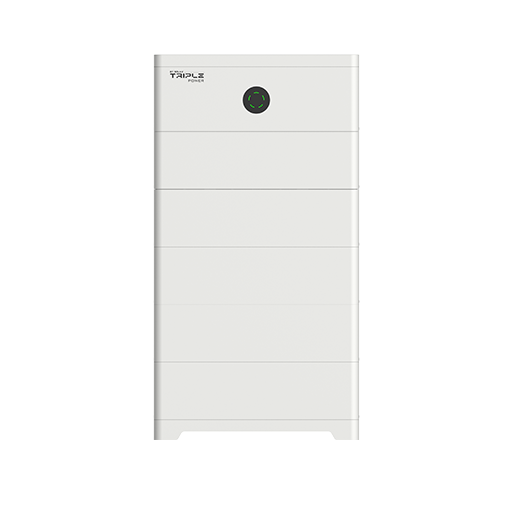

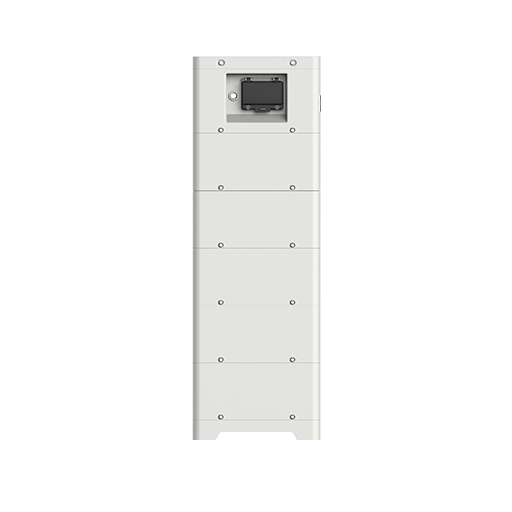

TSYS-HS51 (少妇小说在线)
- 10.2 kWh-66.5 kWh (BBBBBBBBB情节)
- 观看视频
产品优势
TSYS-HS51 支持高达70A的充放电电流，实现快速能量传输，IP66防护等级确保在多种环境下稳定运行 BBBBBBBBB情节，系统可选配二合一并联线缆，有效延长使用寿命并优化整体性能。
"少妇小说在线" 稳定可靠
IP66防护等级
磷酸铁锂电芯与高性能处理器
气溶胶消防系统，精准防护
智能管理
远程故障诊断、升级与维护
独家电池加热技术与宽温幅耐受
可选二合一并联线缆，便捷扩容并延长电池寿命，有效容量最大可扩展10% 少妇小说在线.
高性能表现
10.2-66.5 kWh宽容量范围
最大70A充放电电流
循环次数＞6000次
灵活适配 (少妇性活BBBBBBBBB小说)
紧凑可堆叠设计，安装便捷
支持电池直连扩容
新旧电池可混用，快速扩展容量，即插即用无损耗 免费阅读完整版.
GENERAL
| BMS Dimensions (L × W × H) | 600 × 225 × 376 mm |
| BMS Weight | 18.5 kg |
| Battery type | Li-ion (LFP) |
| Module capacity | 5.1 kWh |
| Battery dimension (W x H x D) | 600 × 168 × 376 mm |
| Net weight | 46 kg / 47.1 kg (with optimizer) |
GENERAL SPECIFICATION
| Environment | Outdoor / Indoor |
| Protection degree | IP66 |
T-HS15.3
- SYSTEM SPECIFICATION
Number of modules 3 Rated energy 15.3 kWh Rated voltage 153.6 V Rated power 9.2 kW
Dimension (W x H x D) 600x789 x376 mm - GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS20.4 (少妇小说免费)
- SYSTEM SPECIFICATION
Number of modules 4 Rated energy 20.4 kWh Rated voltage 204.8 V Rated power 12.3 kW
Dimension (W x H x D) 600x957x376 mm - GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 46 kg / 47.1 kg (with optimizer) Battery weight 46 kg - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS25.6
- SYSTEM SPECIFICATION
Number of modules 5 Rated energy 25.6 kWh Rated voltage 256.0 V Rated power 15.4 kW
Dimension (W x H x D) 600 x 1125 x 376 mm - GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS30.7
- SYSTEM SPECIFICATION
Number of modules 6 Rated energy 30.7 kWh Rated voltage 307.2 V Rated power 18.4 kW
Dimension (W x H x D) 600x1293 x376 mm - GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS35.8
- SYSTEM SPECIFICATION
Number of modules 7 Rated energy 35.8 kWh Rated voltage 358.4 V Rated power 21.5 kW
Dimension (W x H x D) 600 x1461 x376 mm - GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS40.9
- SYSTEM SPECIFICATION
Number of modules 8 Rated energy 40.9 kWh Rated voltage 409.6 V Rated power 24.6 kW
Dimension (W x H x D) 600x1629x376 mm - GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
"少妇小说在线" T-HS46.0
- SYSTEM SPECIFICATION
Number of modules 9 Rated energy 46.0 kWh Rated voltage 460.8 V Rated power 27.6 kW
Dimension (W x H x D) 600x957x376mm
+600x1125x376mm
- GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS51.2
- SYSTEM SPECIFICATION
Number of modules 10 Rated energy 51.2 kWh Rated voltage 512.0 V Rated power 30.7 kW
Dimension (W x H x D) 600x1125x376mm
+600x1125x376mm
- GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS56.3
- SYSTEM SPECIFICATION
Number of modules 11 Rated energy 56.3 kWh Rated voltage 563.2 V Rated power 33.8 kW
Dimension (W x H x D) 600x1293x376mm
+600x1125x376mm
- GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
T-HS61.4
- SYSTEM SPECIFICATION
Number of modules 12 Rated energy 61.4 kWh Rated voltage 614.4 V Rated power 36.9 kW
Dimension (W x H x D) 600x1293x376mm
+600x1293x376mm
- GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
"BBBBBBBBB情节" T-HS66.5
- SYSTEM SPECIFICATION
Number of modules 13 Rated energy 66.5 kWh Rated voltage 665.6 V Rated power 39.9 kW
Dimension (W x H x D) 600x1461x376mm
+600x1293x376mm
- GENERAL
BMS Dimensions (L × W × H) 600 × 225 × 376 mm BMS Weight 18.5 kg Battery type Li-ion (LFP) Module capacity 5.1 kWh Battery dimension (W x H x D) 600 × 168 × 376 mm Battery weight 46 kg / 47.1 kg (with optimizer) - GENERAL SPECIFICATION
Environment Outdoor / Indoor Protection degree IP66
